Yggdrasil™ perforated wood panel

kr 5 ,054.00 per m² incl. VAT

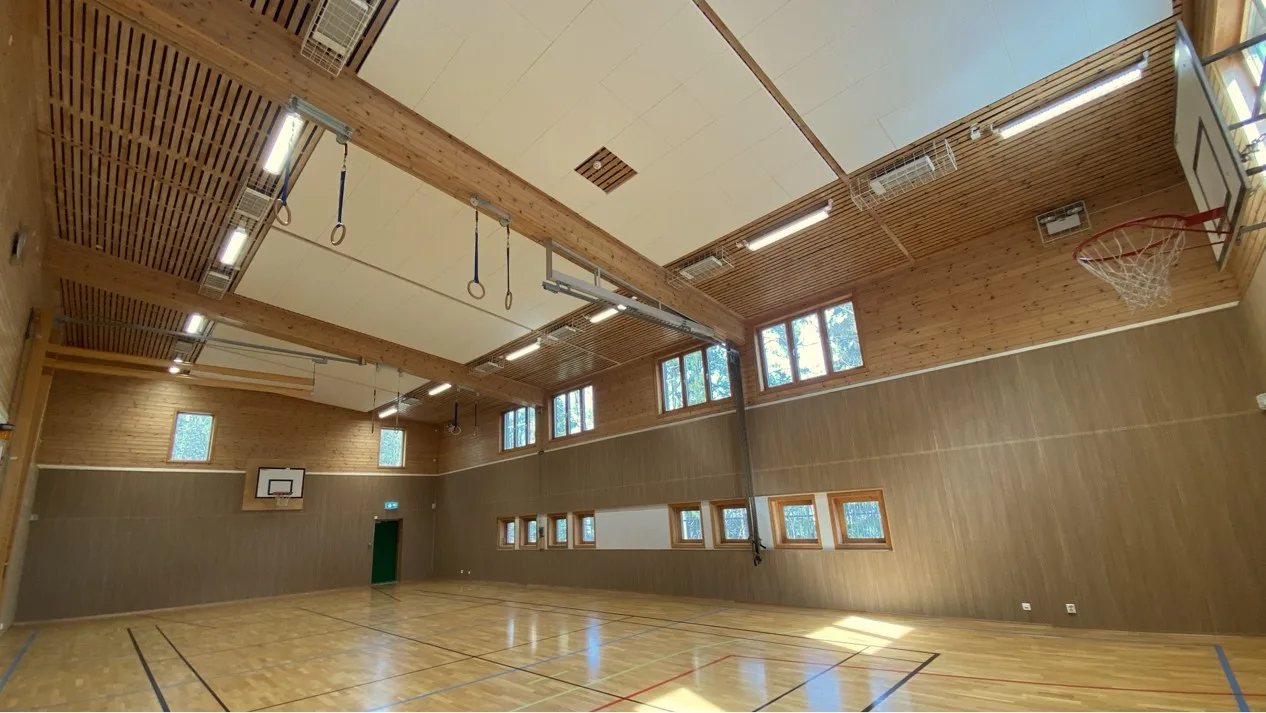

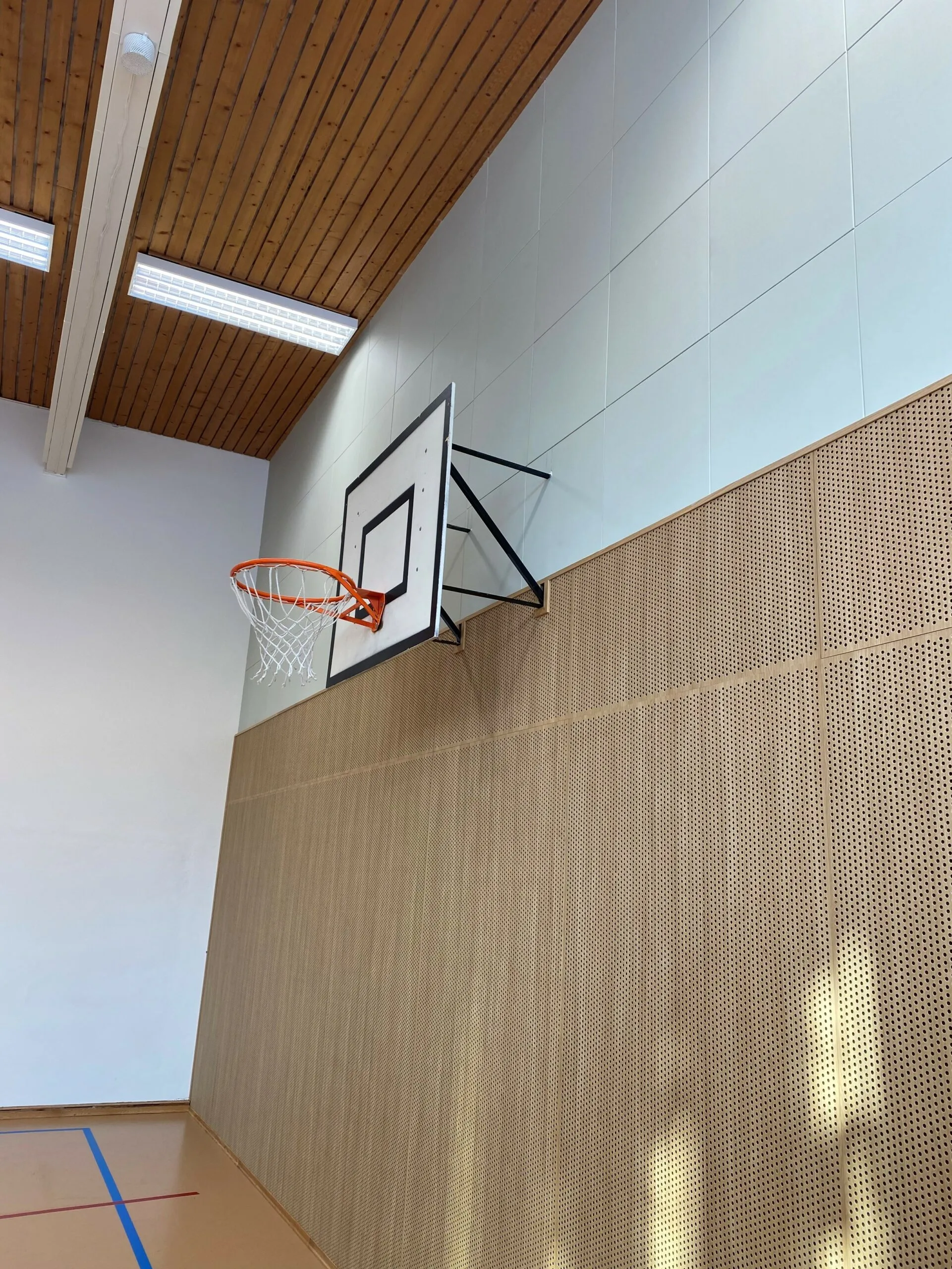

The solution is designed specifically for direct wall mounting. But it can also be installed in ceilings. With high sound absorption and effective sound attenuation, sound class B, it is therefore suitable for most rooms and areas where there is a lot of reverberation and noise. The solution is also very solid and resists rough treatment and is often used in sports halls, for example. The panel is available with a traditional Oak surface. Special order with Birch or Ash and other colors.

There are three components in the solution: EiraTM40mmblack absorber (sound class A) with high density is mounted on the inside with glue/fastener to the absorber. The perforated MDF board is mounted on the outside of the absorber. Screws and moldings are not included.

Number of m2 (sqm)
Total price

Description

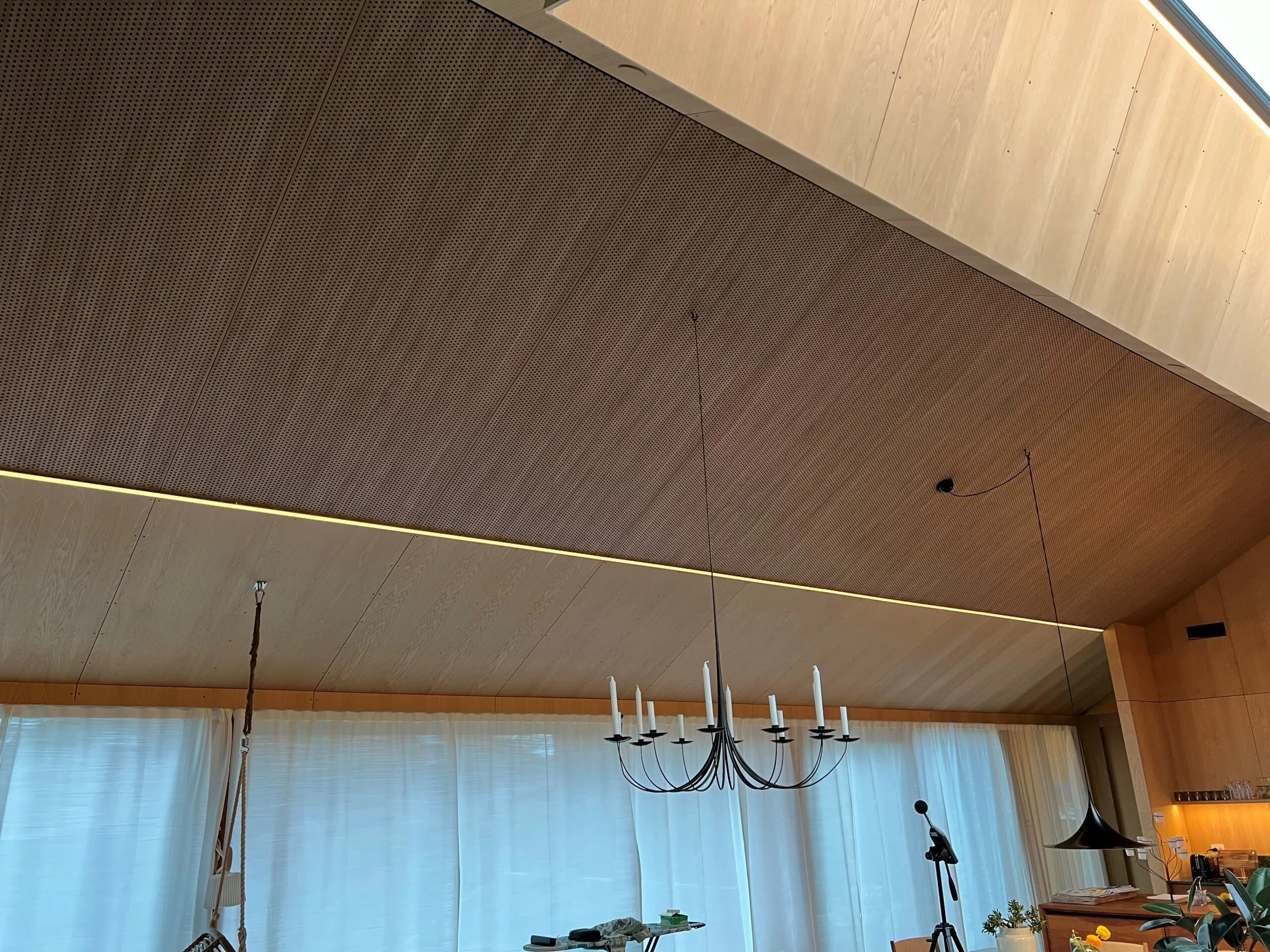

The solution is designed specifically for installation directly on walls or ceilings.

There are three components in the solution:

1: EiraTM40mmblack absorber (sound class A) with high density is installed inside with

2. adhesive/fixing agent for the absorber.

3. the perforated MDF board is installed on the outside of the absorber. Screws and moldings are not included.

Sizes. Standard sizes and Oak surface. Absorbent and fabric in matt black. Special sizes and selected RAL colors as special order.

The solution has fire class B-s1-2, d0, according to EN 13823 and EN13501-1. The absorber itself has fire class A2.

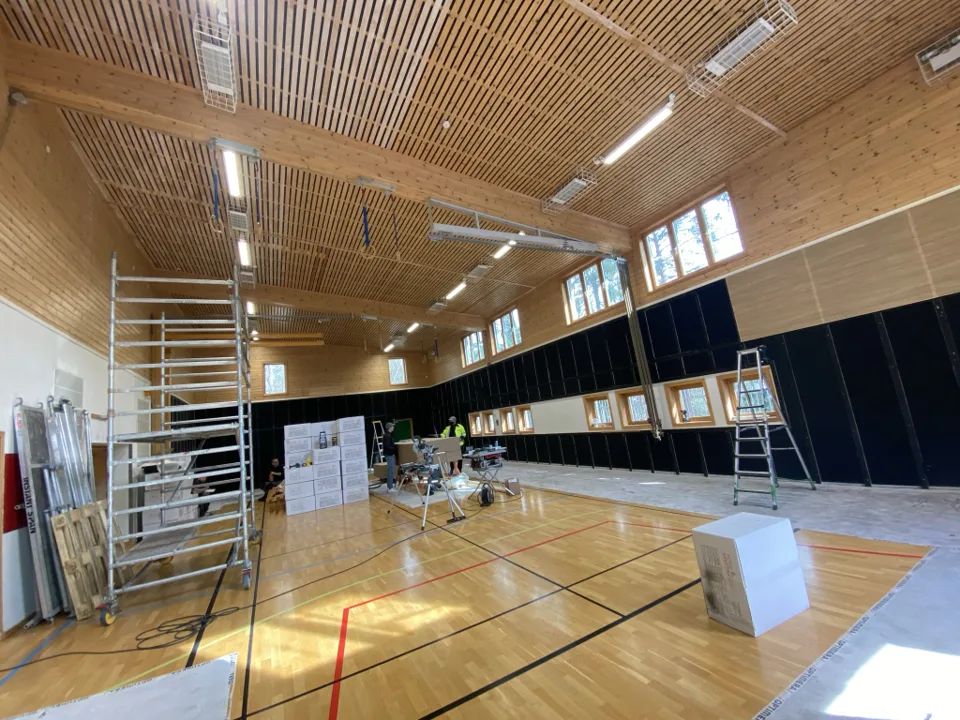

Installation.P laths are installed directly on the ceiling or wall. Normally fixed with mounting adhesive and screws. The panels do not fit into a traditional T-system. Panels for T-system are special order.

The absorber is M1 certified. This means that the product has been tested and meets the strictest international requirements for emissions and non-use of toxic components. There are specific requirements for acoustic products that must be met to obtain M1 certification.

Insulating properties. The absorbers have very good insulating properties. Laboratory tested in accordance with current regulations. Thermal thermal conductivity / Lambda value = 0.033W/(m-K). Thermal heat resistance = 1.191 (m2-K)/W.

EPD (Environmental Product Declaration). The product has completed the LCA (Life Cycle Assessment) report and received the EPD (Environmental Product Declaration) certificate.

Sustainability for the MDF panel. The wood used in the MDF panel is produced in accordance with sustainability and certified by PEFC or FSC. Produced in Norway.

Cleaning and maintenance. The panel has a surface that allows dusting, vacuuming and careful washing with a slightly damp cloth. If the panel is painted/sealed again, it will lose its properties.



Additional information

Size (mm)

600 x 1200 x 52, 1200 x 1200 x 52, 1200 x 2400 x 52

Data sheets and documentation

Norwegian:

English:

Acoustics

Sound class B

Sound insulation: Rw = 12 dB according to ISO 717-1:2003

Montering

There are three components in the solution: EiraTM40mmblack absorber (sound class A) with high density is mounted on the inside with glue/fastener to the absorber. The perforated MDF board is mounted on the outside of the absorber. Screws and moldings are not included.

Installation guide glued up



Information about sound attenuation when gluing on sound-absorbing and sound-blocking panels.
